Products

Composite Hose	Rubber Instrument Hose	Flexible Metal Hose
Spiral Hydraulic Hose	Hydraulic Hose	Suction and Return Hose
Pneumatic Hose	TFE High Pressure Hydraulic Hose	Rotary Hose

Alfa Supply Group, supplies a wide range of Hoses for fluids supply and transfer which are efficient enough to transfer water-base mud/oil-base mud at high pressure in large volumes.

Hoses

The metal hoses are offered in a variety of different alloys that meet of exceed even the most stringent service conditions that industry demands. The Teflon hoses are easier to move, handle and install with comparable burst pressure rating. The Composite hose products are designed to meet the critical requirements of chemicals and fluid handling.

Their multi-layer construction prevents catastrophic failures. Industrial Rubber Hose is generally used for air, water, steam, petroleum and chemical transfer. This hose is also used for unloading oils and fuels from tank. The hoses that we supply meet and exceed various international quality standards.

High Pressure Hydraulic Hoses
High Pressure Water Blast Hoses
High Pressure Drilling
Stainless Steel Metallic Hoses

Stop Collar

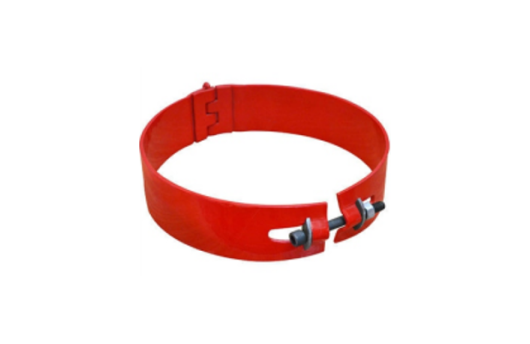

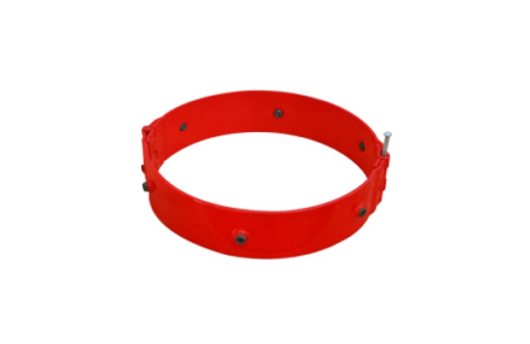

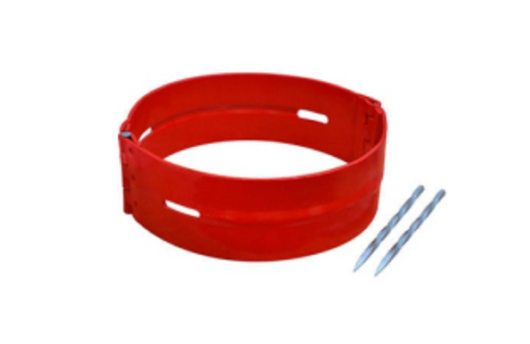

Image caption Nail Stop Collar Hinged Bolted Stop Collar Hinged Set Crew Stop Collar

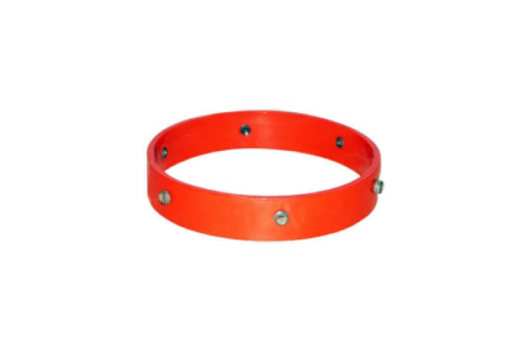

Slip on Set Screw Steel Stop Collar

Cementing Plug & Float Equipment

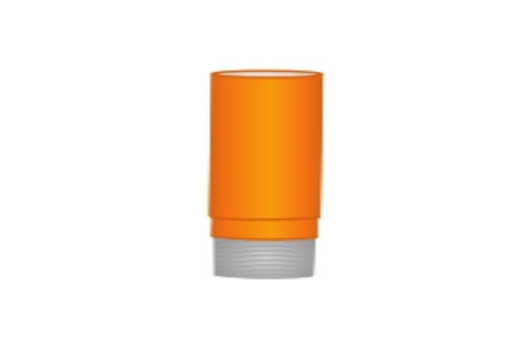

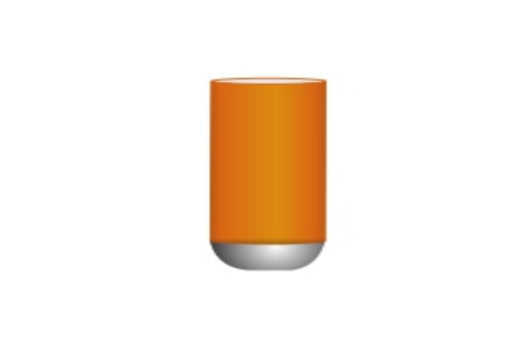

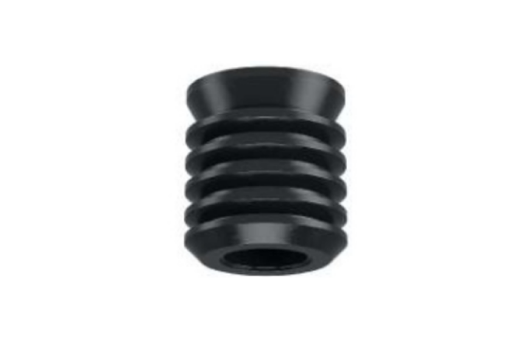

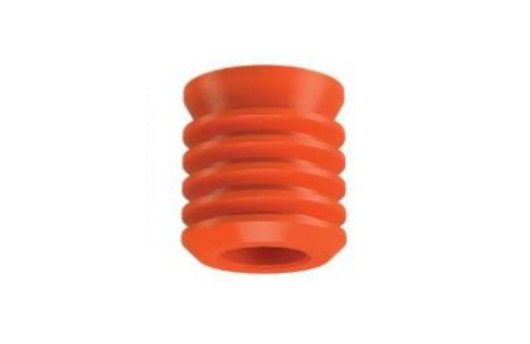

Top & Bottom Cementing Plug RotatingTop & Bottom Cementing Plug Non RotatingFloat Collar Float Shoe

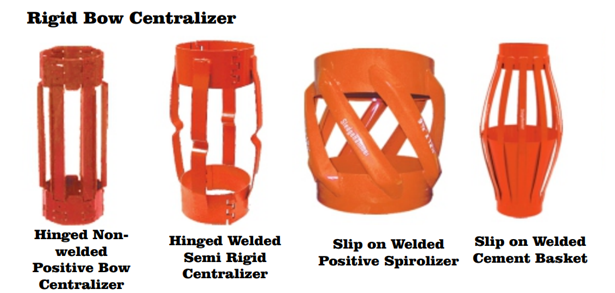

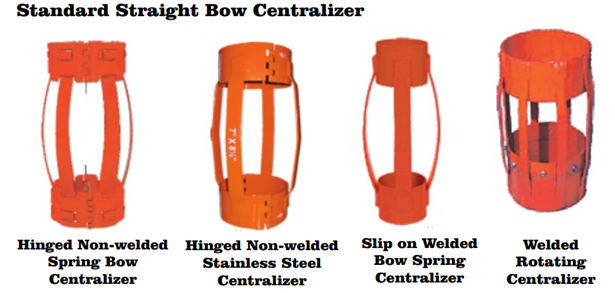

Bow Spring

Rigid Centralizer Collar

Oil Country Tubular Goods (OCTG) Supply

Alfa Supply Group supplies OCTG, oilfield casing, tubing, drill pipes, pup joints, Adrill collars, crossovers, HDD rods and associated premium tubular products and other OCTG accessories to the regional Oil field, Oil & Gas related projects.

Brands we supply:

Rontech
Petromateria

Seamless and ERW Casing

Specification > API 5CT
Grades > K55, N80, L80, C95, P110, Chrome, J55(Modified), J55 (API), PS80
Special Grades > For sour services and for deep well with high collapse properties
Dimensions > OD 4" - 26", WT 0.2 - 0.5"
Length range > 1, 2 or 3
Thread connections > API

We supply API Drill Pipe of wide variety of sizes, designs, and metallurgy and manufactured from high quality seamless pipes and connections with all API 5D and other required specifications.

Specification > API 5D and other Specifications
Dimensions > OD 2 3/8" - 6 5/8"
Length > up to 15’ (4.57M)
With friction-welded tooljoints, according to API

Drill Pipe and Production Pipe

Production Pipe	Structural Pipe
Production Casing	Structural Casing
Production Rods	Structural Tubing
Production Tubing	Structural Rods

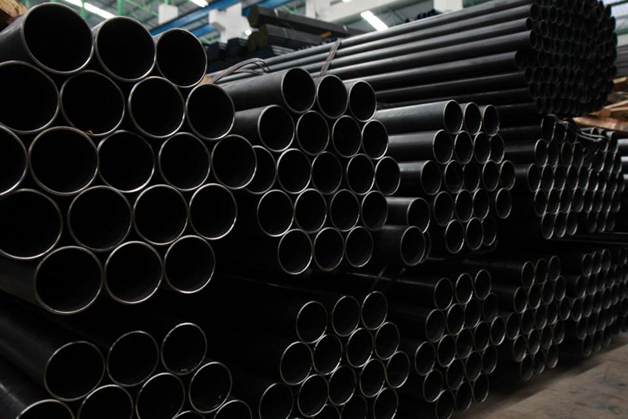

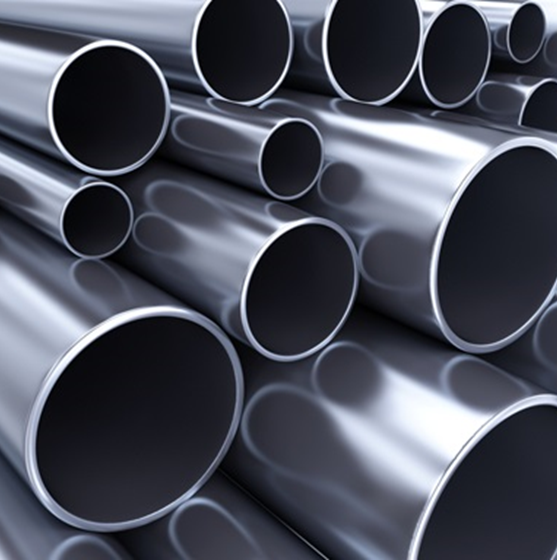

Pipes

Seamless Carbon Steel Pipes

These pipes are stocked and supplied in the following:

Grades: ASTM A53 GR. B, ASTM A106 GR. B, API 5L GR. B, X42 in accordance to ASME B36.10, API5L PSL1, NACE MR- 01-75.
Size Range: ½” to 24”
Wall Thickness: Sch.20, Std, 40, 60, XS, 80, 100, 120, 160, XXS ASTM A333 GR.6, API 5L GR.X52 in accordance to ASME B36.10, API5L PSL1, NACE MR- 01-75
Size Range: ½” to 24”
Wall Thickness: Sch. Std, 40, XS, 80, 120, 160, XXS

ERW Carbon Steel Pipes Carbon Steel Pipes

These pipes are stocked and supplied in the following

Grades: ASTM A53 GR. A and GR.B , API 5L Gr.B
Size Range: ½” to 24”
Wall Thickness: Sch. Std, 40

These pipes are also available in Factory Galvanised with markings and can also be supplied with grooved ends with corresponding grooved fittings

SAW Carbon Steel Pipes
